VMware View 5.1 and Imprivata Biometric ProveID workflows: Issues with PCoIP.

I ran into an interesting issue recently during a View deployment for a customer that was making use of VMware View 5.1.1, Imprivata OneSign 4.6 Hotfix 11, and Meditech EMR with Forward Advantage’s Authentication Manager product for ProveID.

Now, some of you may not know about this ProveID, what is it, and why are we even bothering it? Well, here in the great state of Ohio (and several other states), doctors and nurses are legally required to prove their identity during an EMR (Electronic Medical Record) clinical workflow which results in either the signing of a medication order or the distribution of a medication. This is because if a nurse or doctor were to leave their workstation unlocked, anyone who could walk up to the workstation could purposefully or accidentally sign a medication order or give a medication, while behaving as someone else. This is ESPECIALLY important when it comes to the authorization of medication. The difference between the great state of Ohio and other states, is that password alone has been deemed by the Ohio Board of Pharmacy not enough security for the ProveID workflow, and that some form of Biometric, Token or other dual-factor authentication is required to ensure that the person is who they say they are. Now, enough of that tangent.

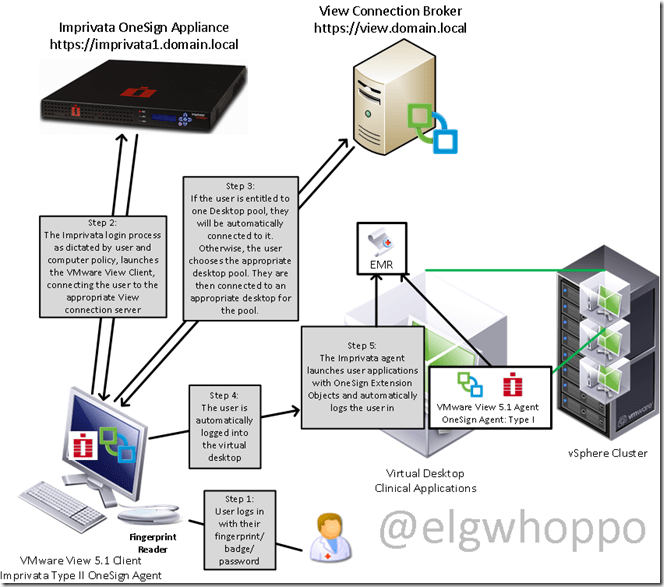

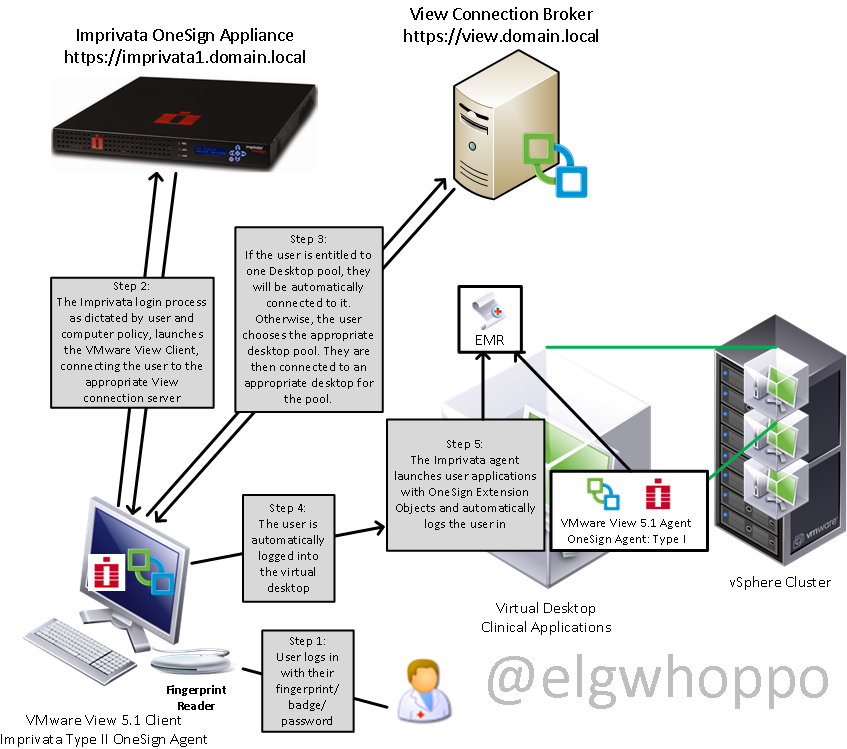

For this particular client, the Windows XP golden images were set, the pools had been configured, and the Imprivata VDI integration module was integrated and activated. Some of you guys who are VMware junkies may not know what functionality the Imprivata product brings to the table. Check out this drawing I made which basically outlines the functionality that it brings from a SSO and Clinical logon workflow perspective. Here is a drawing I put together that shows the average logon process with Imprivata integration.


Now, keep in mind, the above flowchart is just the process for getting logged in. That process works just fine regardless of the connection protocol. The next drawing is specifically about what happens when a ProveID event takes place, where a person needs to prove their identity specifically in this case with biometrics. It should be noted that the 3rd party authentication software isn’t always needed if Imprivata has native support for ProveID actions in their application. In this case, a third party product was required.


This is how it should look when it is working. The problem I had with the customer was that when using PCoIP, during step #4, where the fingerprint data was being sent back to the VM. Here is where if the virtual channel between the endpoint and the VM was broken, the communication which passes the fingerprint data back would not function, and result in a broken workflow and a “disconnected fingerprint reader” error message in the VM. Another impact of the virtual channel breaking was that if a lock command was sent to the VM, it would only lock the VM and not the endpoint. We often found that when the error was occurring sporadically, it most frequently occurred the first time that a user logged onto a VM that they hadn’t previously logged onto, but individual results varied.

  • First we tried using the OneSign 4.6 HF11 agent and a Windows XP View 5.1.1 pool with PCoIP as the required protocol. ProveID did not function with the biometric readers.
  • Second, we tried using the OneSign 4.6 HF11 agent and a Windows XP View 5.1.1. pool with RDP as the required protocol. ProveID did not function with the biometric readers.
  • Third, we tried using the OneSign 4.6 HF5 agent and a Windows XP View 5.1.1 pool with PCoIP as the default protocol. ProveID sporadically functioned with the biometric readers.
  • Finally, we tried using the OneSign 4.6 HF5 agent and a Windows XP View 5.1.1 pool with RDP as the default protocol. ProveID consistently functioned as shown in the workflow above.

At least in the situation I was in, I believe we isolated the issue down to a defect with the Imprivata agent that is only exposed when using VMware View 5.1.1 Windows XP pools with PCoIP, and Biometrics for ProveID workflows. The ticket with Imprivata is still open, so the jury is still out, but I think we narrowed it pretty far.

Also as a bonus:

Don’t forget what PCoIP looks like from a stack perspective. To get a quick look at what the PCoIP network stack looks like, check out this article that Andre Leibovici,wrote on disabling the clipboard transfer with View, there is a great graphic on there that highlights how it’s broken down. http://myvirtualcloud.net/?p=927

Hope this helps someone understand the madness that is the ProveID workflow shanagins. I will post an update when we get a final answer as to the root cause.

** Update **

This ultimately was happening because Imprivata 4.6 HF11 was not yet certified for VMware View 5.1.1. After talking to a friend of mine who attended HIMMS, I learned View 5.1.2 it is currently scheduled to be certified by mid-april.

Advertisements
Posted in Uncategorized
2 comments on “VMware View 5.1 and Imprivata Biometric ProveID workflows: Issues with PCoIP.
  1. Chris Miller says:

    Med order re-authentication proved to be an issue for me in the past as well in an environment running Sentillion Vergence. In that case the prox readers was identified as a HID input device on the thin client (running Win7 embedded). I created an exception in the registry to allow it to be redirected via View USB redirection. Once a connection was established, the prox reader would connect directly to the VM where the Vergence agents on the VM would recognize the reader and operate as normal.

    We used scripting on the thin clients to detect the View client and do things like perform a logoff or lock. In your configuration, I had a few questions:

    What type of client is in use (repurposed PCs, thin clients, zero clients)?

    Are you using the Imprivata channel to deal with the logon/lock on the client? Is passing the device through to the VDI session an option? I believe the channel could still exist between the session and the thin client which would allow you to respond to a VDI login/lock w/ a thin client lock.

    Great write-up, thanks for sharing!

  2. elgwhoppo says:

    Hey Chris, repurposed Windows XP desktop clients are in use, locked down with group policy. Yep, the Imprivata channel natively sends an Imprivata Screen lock command back to the endpoint if it detects that a lock command is used in the VM.

    Passing the USB reader to the VM is an option…providing there is no Imprivata agent installed and connected to the OneSign appliance at the endpoint that the user is connecting from. A doctor can go and buy their own supported USB fingerprint reader and sign medications securely all day long from their home PC by virtually attaching the device to the VM.

    In this case for the clinical staff onsite, it was a project requirement to have the Imprivata agent loaded and connected to the OneSign appliance on every endpoint so that the users can use the fingerprint reader to log into the endpoint, and then if set up for virtual desktop integration, automatically be logged into the VM. If you try to pass the USB reader through to the VM from an endpoint that has an agent installed and is connected to the appliance, the fingerprint option is greyed out because it is expecting the device to be plugged in at the endpoint, rather than virtually plugged into the VM. (At least that’s what I found during testing : D)

    Thanks for the comment!
