My Little VSAN

MyLittleVSANSo I finally got around to refreshing my VSAN after the 1.0 release and I was hit by the AHCI bug. I must say, I had forgotten how powerful it is to put the disk “close to home” with VSAN technology is and how truly simple it is to set up. The goal of this post is simply to provide you with the hardware that I utilized to make my little VSAN lab, which has ~11TB of capacity and 360GB of flash. I also ran two quick IOmeter runs and posted their output. And yes the graphic over there is cheesy. I have lots of children in my house so it somewhat explains my rationale.

I purchased 4 refurbished C1100 CSTY-24 servers spec’d as such:

(2) Xeon L5520 CPUs @ 2.27Ghz

72 GB Memory

(3) 2TB Hitachi  7200 RPM spinning disks per server

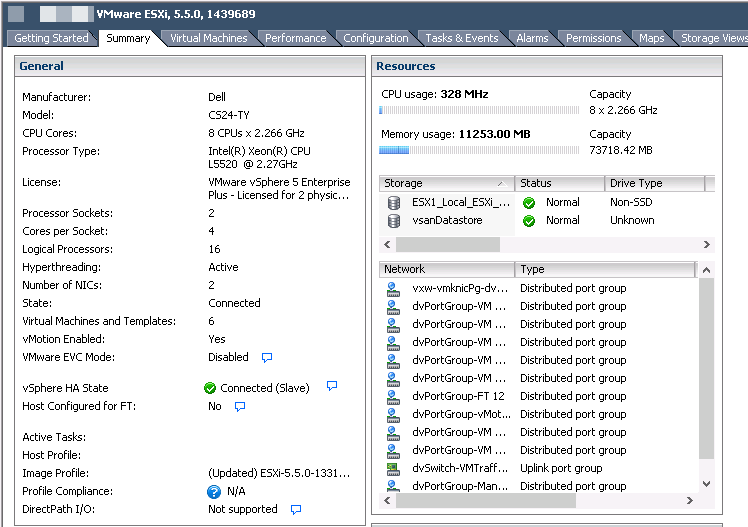

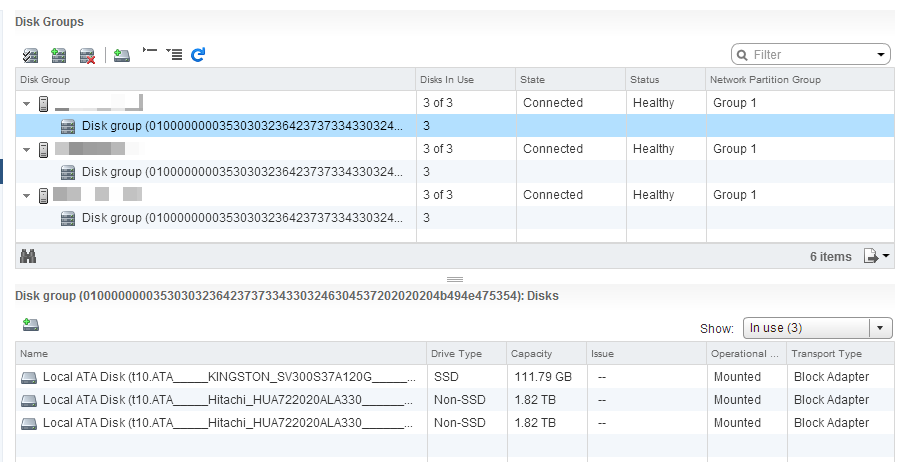

Host_ConfigVSANVSAN2

I purchased them from deepdiscountservers and they cost me about $900 USD each, which was a pretty good deal, even when comparing against a whitebox build. Of note, since these are refurbed OEM’d custom spec’d systems, Dell will not support them and good luck updating the BIOS on them. One of them had some bizarre fan issue where it would spin the fans all the way up at random even though the temp and workload were not changing, so I’m just dealing with that. If I had to buy again, I’m pretty sure I’d actually choose a different flavor of pizza box. May you have better fortune than I in the refurb land. Also of note, there is no RAID card in this server, just an AHCI controller, which is perfect for what we need to do with VSAN. Assuming you’re on the Beta refresh. : )

I also purchased (3) Kingston SSDNow V300 120GB SATA disks from Microcenter for a cool $70 each.

So far with the VSAN beta refresh, everything has been great! Two base runs of iometer on a Windows 7 VM came out as such. I used http://vmktree.org/iometer/ to format the output nice and quick. I will say this, not bad considering it’s refurbed servers with 7200 RPM disks and non-certified MLC flash! Not bad for a basement project, not bad at all. Stay thirsty my friends.

VM Policy: 1 Failure

WIn7IO_1Failure

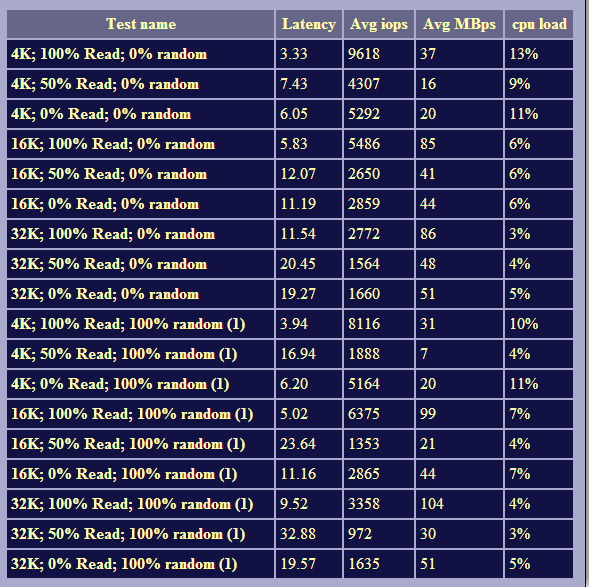

VM storage Policy: 1 Failure, 1 Stripe Per Disk, 20% Read Cache

WIn7IO_1Failure1stripe20percent
