Upgrading to Horizon View 6 – Part 4 – Security Servers

Upgrading to Horizon View 6 – Part 1 – Prepwork

Upgrading to Horizon View 6 – Part 2 – View Composer

Upgrading to Horizon View 6 – Part 3 – Connection Servers

Upgrading to Horizon View 6 – Part 4 – Security Servers

Upgrading to Horizon View 6 – Part 5 – Desktops

Remember our prepwork from the first post:

Prepare for View Security Servers (As in you’re about to perform the upgrade)

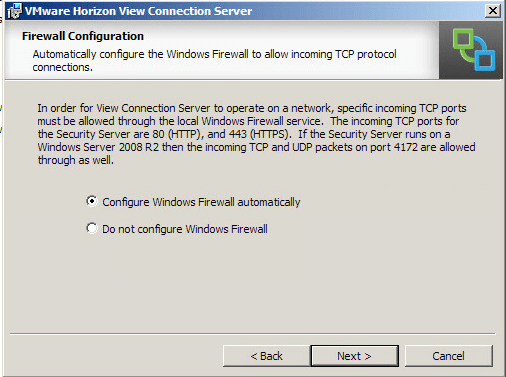

  • Make sure you understand whether or not you’re using IPsec tunneling between your connection broker and and security server. Understand the implications that the Windows firewall must be running.
  • In the View Administrator, select the security servers and click More Commands > Prepare for Upgrade or Reinstallation. This will disable the aforementioned IPsec rules if they are enabled.

Let’s go!

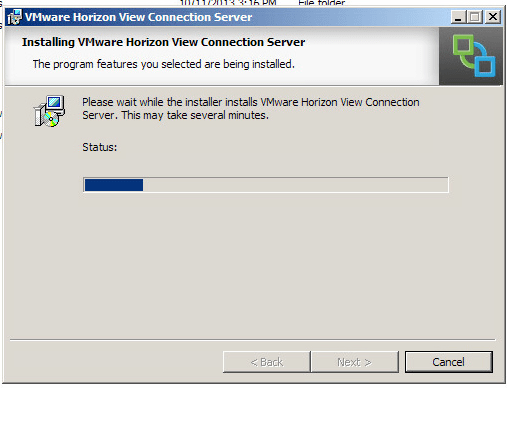

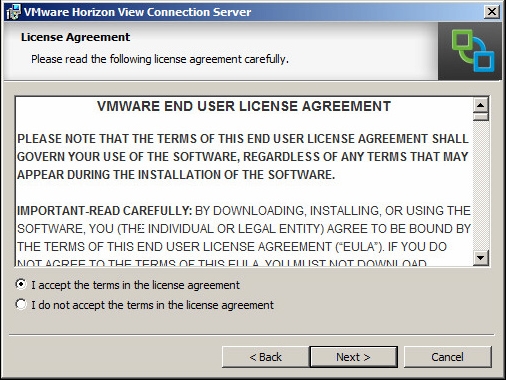

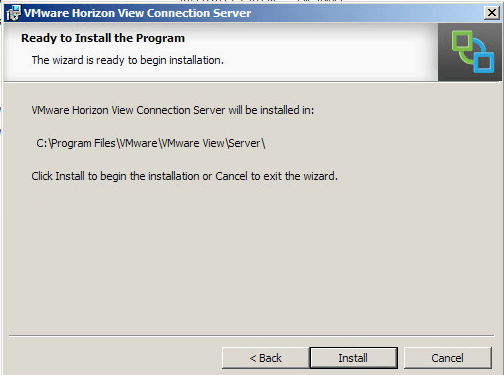

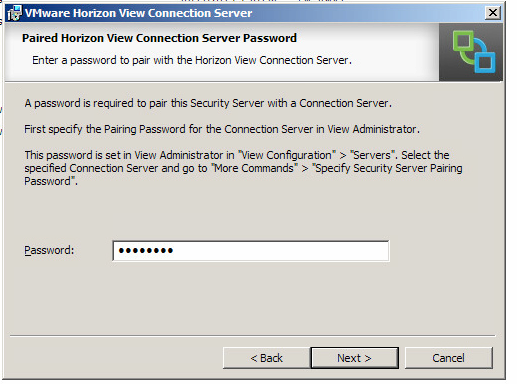

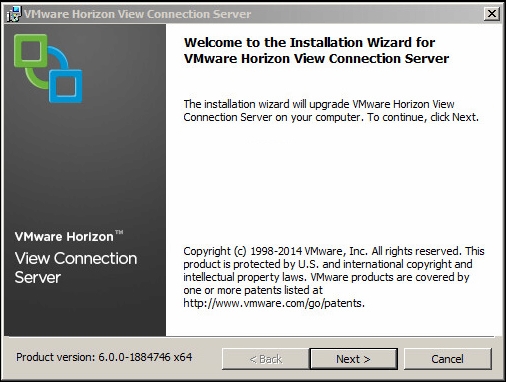

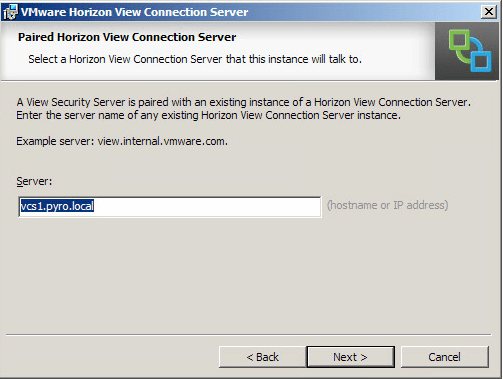

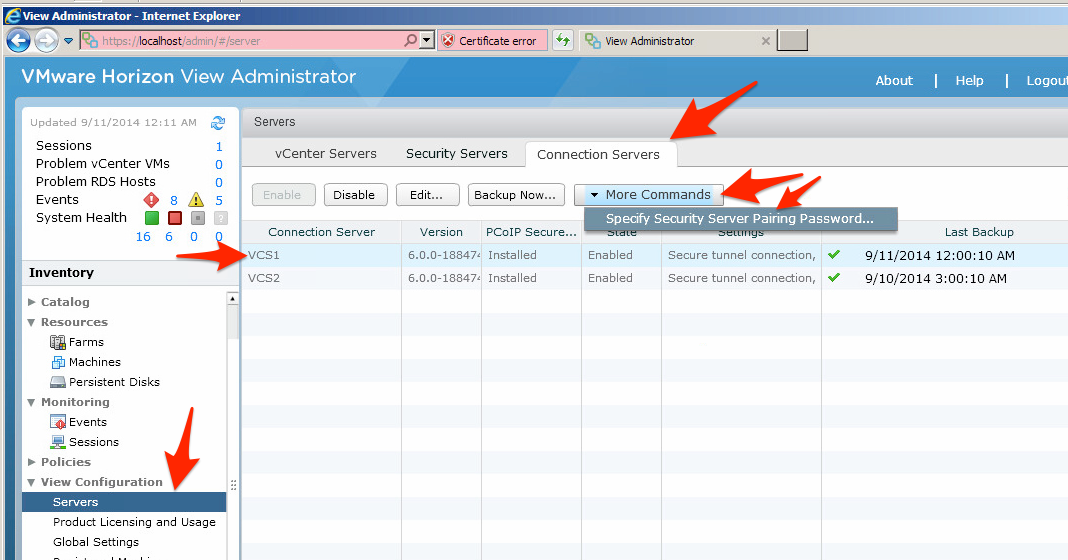

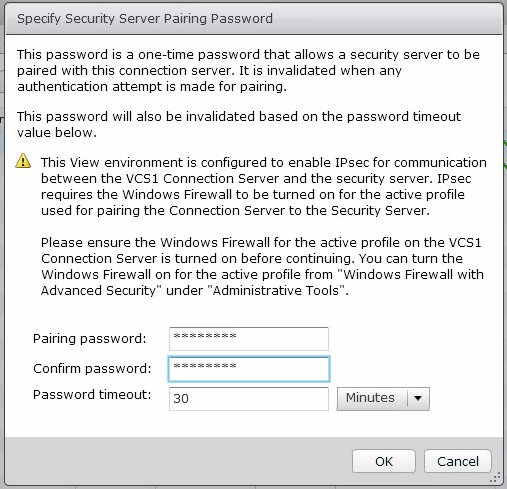

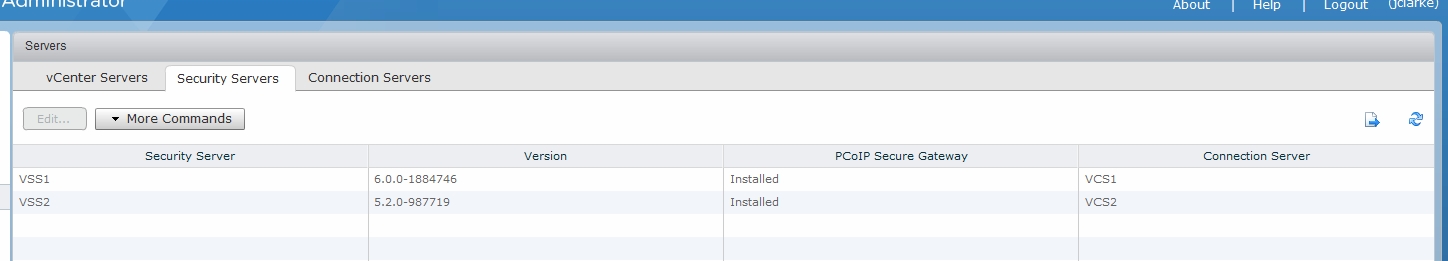

Prepare for Upgrade or Reinstall if you need to break the IPsec tunnel between connection broker and security server. vss01 Specify the security server paring passwordvss02 vss03 Gogo upgrade on VSS1!vss04 vss05 vss06 vss07 Your information here should be the URL on the public facing side, and your public IP address for the PCoIP external URL. vss08 vss09 vss10 vss11 One down, one to go. vss12 Make sure to specify the paring password and prepare for upgrade BEFORE clicking here. Revert back to the beginning if you can’t remember how. vss13a vss13b vss14 vss15 vss16 vss17 vss18

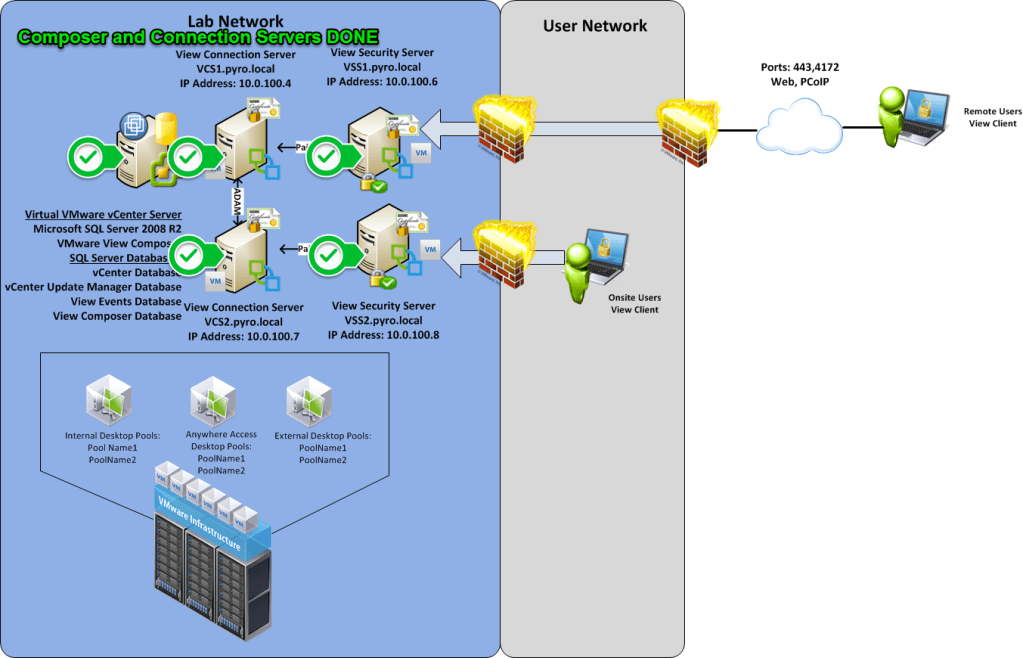

Huzzah! Security servers upgraded to 6.0. Next up, VM side!

vss22

Advertisements
Posted in Uncategorized
7 comments on “Upgrading to Horizon View 6 – Part 4 – Security Servers
  1. […] Upgrading to Horizon View 6 – Part 4 – Security Servers […]

  2. […] Horizon 6.0.1 – PRINT ALL THE THINGS Upgrading to Horizon View 6 – Part 4 – Security Servers → Sep 14 […]

  3. […] Upgrading to Horizon View 6 – Part 4 – Security Servers […]

  4. […] Upgrading to Horizon View 6 – Part 4 – Security Servers […]

  5. Mike says:

    Great set of articles on how to upgrade Horizon View to v6.x

    As you will agree a picture speaks a thousand words! any chance of uploading vss01 – vs022 pics as they seem to be missing along with a few in the other How To’s

    – keep up the great work.
    Cheers,

  6. Mark O'Neil says:

    @elgwhoppo,
    Love your work – we just Updated to View 6.1 using your notes and the terribly cryptic VMWARE guide.
    Your guide made more sense!
    Thanks,
    Mark O’Neil
    Network Admin
    Bialik College
    Melbourne, Australia
